為電池?fù)Q電專門設計
專利產品 ，定位設計，正反互用，安全可靠！
1.電氣特性Electrical:
額定電壓Voltage rating: 250 V AC max.
額定電流 High voltage power terminal: 30 AMP
Low pressure communication terminal：1 AMP
接觸電阻Contact resistance: 50 m ohms max.
耐電壓Dielectric withstanding voltage: 1500 V DC/1 min.
絕緣電阻Insulation resistance: 100 M ohms min.
2.機械性能Mechanical:
插入力Mating Force: 60 N max.
拔出力Withdrawal Force: 30 N min.
耐久性Durability: 5000 cycles min.
3.工作環境Environmental:
工作溫度Operating Temperature:-40 to+105°
4.材料Material:
膠芯Housing: 高溫塑膠Thermoplastic capable with PBT GF30% UL94-V0,
端子Contact: 銅合金Copper alloy
冠黃Crown yellow：彼銅pet. Copper
5. 電鍍Finish
端子Terminal: Brass nickel plated 3 um.
冠黃Crown yellow：Gold-plated 0.075 um.
|
智能制造

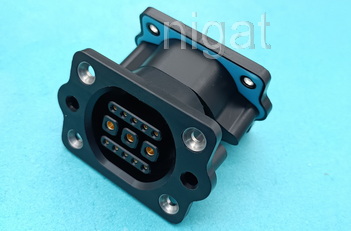

13 pin 防爆 換電接口
