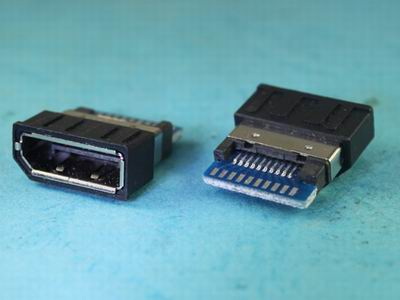

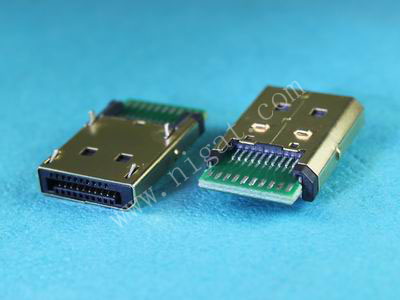

DISPLAYPORT 焊線式連接器 SOLDER Series Connector
應用/市場Applications:
DVD播放機/錄音機、液晶電視、顯示器、筆記本電腦、計算機、多媒體設(shè)備等
DVD Player/Recorders , LCD TV, Monitor, Notebook computer,Multimedia equipment ,etc.
產(chǎn)品規(guī)范Product SPEC ：
1.電氣特性Electrical:
額定電壓Voltage rating: 40V AC max.
額定電流Current rating: 0.5 AMP
接觸電阻Contact resistance:50m ohms max.
耐電壓Dielectric withstanding voltage: 300V AC/1 min.
絕緣電阻Insulation resistance: 100M ohms min.
2.機械性能Mechanical:
插入力Mating Force:45N max. 拔出力Withdrawal Force:10N min.
插拔耐久性Durability:1500cycles min.
3.工作環(huán)境Environmental:
工作溫度Operating Temperature:-40to+85°
4.材料Material:
膠芯Housing: High Temperature Plastic with GF,UL94V-0 Black.
端子Contact: 銅合金Copper alloy
外殼Shell:銅合金/馬口鐵Copper alloy&Spcc
5. 電鍍Finish
端子Terminal: Gold plated in contact area over nickel underplated, Tin plated on solder tail area.
外殼Shell: gold&nickel plated overall.
|
