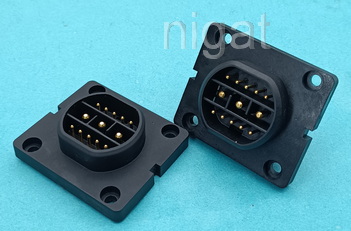

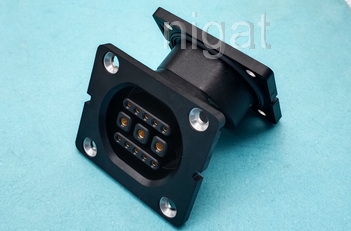

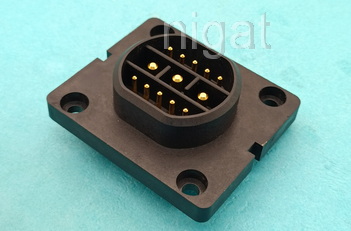

13Pin 新能源電動摩托車換電接口，30A
因正反可以對插，有保護因誤強插造成損壞，對于換電柜使用特嘉
1.電氣特性Electrical:
額定電壓Voltage rating: 250V AC max.
額定電流 High voltage power terminal: 30 AMP
Low pressure communication terminal：1 AMP
接觸電阻Contact resistance:50m ohms max.
耐電壓Dielectric withstanding voltage: 1500V DC/1 min.
絕緣電阻Insulation resistance: 100M ohms min.
2.機械性能Mechanical:
插入力Mating Force:60N max.
拔出力Withdrawal Force:30N min.
耐久性Durability: 5000cycles min.
3.工作環境Environmental:
工作溫度Operating Temperature:-40to+105°
4.材料Material:
膠芯Housing: 高溫塑膠Thermoplastic capable with PBT GF30% UL94-V0,
端子Contact: 銅合金Copper alloy
冠黃Crown yellow：彼銅pet. Copper
5. 電鍍Finish
端子Terminal: Brass nickel plated 3 um.
冠黃Crown yellow：Gold-plated 0.075 um.
|
智能制造
13 Pin 換電接口 3+10
